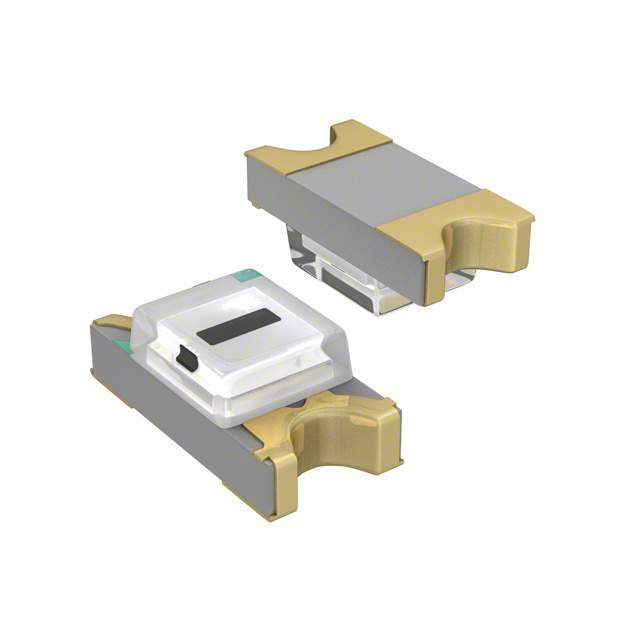

SFH 2701
Photodiode 820nm 2ns 120° 2-SMD, No Lead
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SFH 2701 by Osram and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SFH 2701
| Part Name | SFH 2701 |
| Manufacturer | OSRAM Opto |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Forward |
| Peak Photo Sensitivity | 0.5 (A/W) |
| Mounting Type | Surface Mount |
| Series | SFH |
| Maximum Wavelength Detected | 1050 (nm) |
| Height | 1.25 (mm) |
| Minimum Wavelength Detected | 400 (nm) |
| Width | 1.65 (mm) |
| Length | 3.35 (mm) |
| Spectrum S Detected | Infrared, Visible Light |
| Package Type | Chip LED |
| Amplifier Function | No |
| Wavelength Of Peak Sensitivity | 820 (nm) |
| Number Of Pins | 2 |
Inventory for the SFH 2701 by Osram from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
19,728
|
345 x $0.87
|
Visit Site |
No issues have been reported for the SFH 2701
